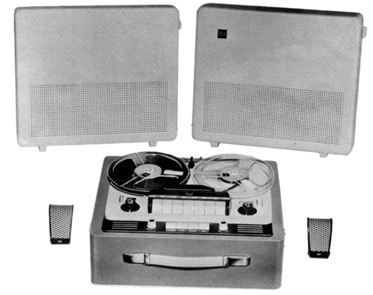

DUAL TG-12A Reel To Reel |
|
DUAL TG-12A Reel To Reel |
Specs provided by Mike Gluss |
|
Saltwater Island, BC, Canada |
|
| Specifications: | Accepts the following voltages: |
| 110, 117, 150, 220, 240 50/60 Cycles | |
| Tracks: 4, International Standard | |
| Speeds: 1-7/8, 3-3/4, 7-1/2 IPS | |
| Frequency Response: | |
| 1-7/8: | |
| 40-9,000 CPS | |
| Signal/Noise Ratio: > 49dB | |
| Distortion: < 5% | |
| Wow & Flutter: < 0.3% | |
| 3-3/4: | |
| 40-16,000 CPS | |
| Signal/Noise Ratio: > 50dB | |
| Distortion: < 5% | |
| Wow & Flutter: < +/- 0.25% | |
| 7-1/2: | |
| 40-20,000 CPS | |
| Signal/Noise Ratio: > 52dB | |
| Distortion: < 5% | |
| Wow & Flutter: < +/- 0.15% | |
| Crosstalk: 40 dB | |
| Inputs: | |
| Microphone: 2mV / 10 Mohms | |
| Radio: 2mV / 22 Mohms | |
| Phono: 100 mV / 1 Mohms | |
| Output: | |
| "Radio" Approx. 1.5v / 18 Kohms | |
| Power output: 2.5 W per channel | |
| Aux. Speaker: 5 Ohms | |
| Monitoring: By Speaker or Earphone | |
| Tone Control: By 4 push buttons | |
| Both Channels | |
| Reel Capacity: 7" | |
| Auto Tape Stop | |
| Weight: 31 lbs, 14-1/2 oz. | |
| Years Manufactured: | 1964-73' |
| Price (New): | $350.00 (USD) |
|
 |
|
