DUAL 1264 Turntable

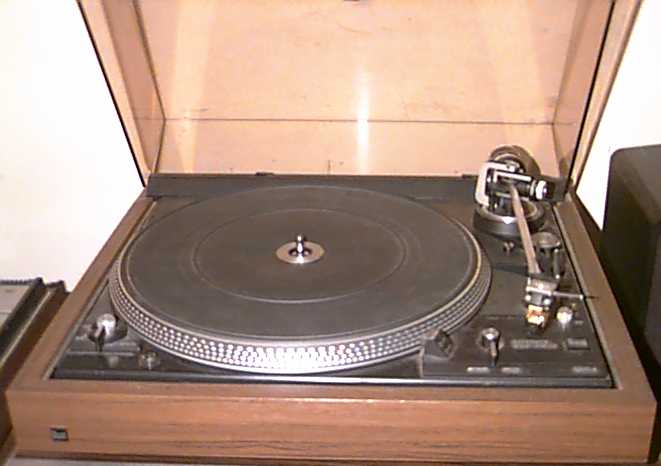

Photo Contributed By Gerard Bagwin
Specs Contributed By Thomas J. Anderson

Specifications:

Current: 56/60Hz changable by changing motor pulley.
Line Voltage: 115V or 230V
Motor: 16 Pole Synchronous, flat belt drive
Speeds:  33.33 & 45 RPM, Semi-Automatic Operation
Power Consumption: 8W
      @ 230V approx 75mA
      @ 117V approc 140mA
Start Up Time: approx 2.5 sec at 33.33 RPM
Platter: Non Magnetic, detatchable, 1kg. 304mm
Pitch Control: 6% @ 33.33 RPM, (1 Semitone)
Stobe: Illuminated, markings for 50 and 60 Hz, both speeds
Sensitivity of Illuminated Strobe for 0.1% speed
deviation:  6 division marks per min @ 50 Hz
                     7.2 division marks per min @ 60 Hz
Wow & Flutter:
DIN:        +/- 0.07%
WRMS:  +/- 0.04%
Rumble:
   Unweighted:   48dB
    Weighted:        70dB
Tonearm:  Distortion free ULM design. Tubular Aluminum
                    mounted in a 4 point gimbal bearing.
Tonearm Length:  221mm
Offset Angle:  24.4'
Cartridge Overhang: 5mm
Tangential Tracking Error: 0.16/cm
Tonearm Bearing Friction: 0.007 g (referred to stylus tip)
Tracking Force: 0-3 grams

Years Manufactured: 1979-80'
Price (New): $280.00(USD)
Also available as the 1264-55 with the
DUAL TKS-55 ULS Cartridge
Years Manufactured: 1979-80'
Price (New): $390.00(USD)
