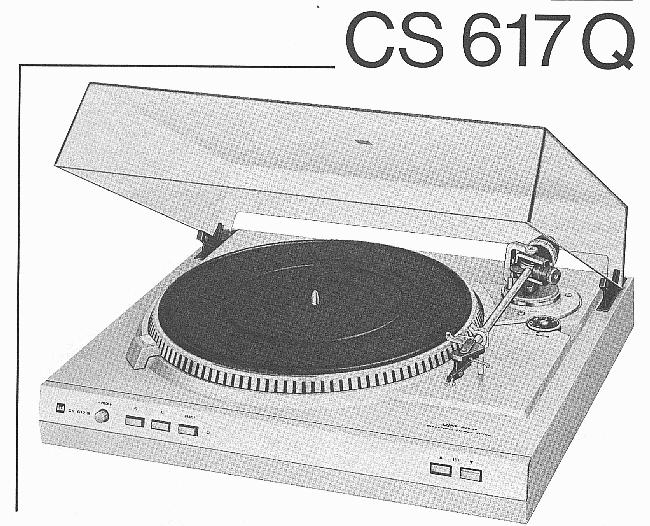

DUAL CS 617Q Turntable |
|
DUAL CS 617Q Turntable |
| Picture and specs sent to us by Alfred Langer, Kiefersfelden | |
| Germany | |
| Specifications: | Two Speed (33.33 & 45 RPM) |
| Strobe Light | |
| Front Panel Controls | |
| Single Play | |
| Electronic Direct Drive | |
| Spec Sheet Data: | Drive System: Dual EDS 502 Direct |
| Drive | |
| Start Up Time: 2-2.5 Seconds @ 33.33 | |
| Platter: 1.25kg, 304mm, non-magnetic, | |
| removable | |
| Platter Speeds: Electronic Switching | |
| Pitch Control: 12%, Variable Resistor | |
| Wow & Flutter: | |
| DIN: 0.045% | |
| WRMS: 0.025% | |
| Rumble: | |
| Unweighted: 52dB | |
| Weighted: 78dB | |
| Tonearm: Distortion free Ultra Low Mass | |
| (ULM) mounted in a 4 point gimbal tip | |
| bearing. 221mm, 160pF capacitance | |
| Stylus Pressure: 0-3 grams | |
| Cartridge Type: ULM, but can be fitted | |
| with a standard 1/2" cartridge with the | |
| use of an accessory adapter. | |
| Years Manufactured: | 1981-83(?) |
| Price (New): | N/A |
|
|
|
