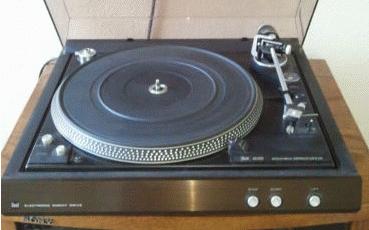

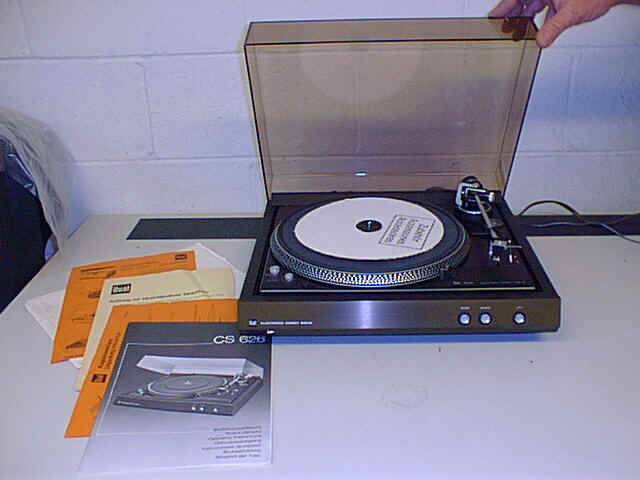

DUAL CS 626 Turntable

Specs provided by: Thomas Josiger
                             Bad Kreuznach,Germany
Specifications: Electronic CMOS-IC Direct Drive
Anti-Skating Control
4 Point Gimbal Mount Tonearm
Pitch Control
Two Speed (33.33 & 45 RPM)
Stroboscope
  Semi-Automatic Operation
Kardan ULM Tonearm System
Comes with the DUAL 55E Cartridge
Base available in either bronze or silver
Spec Sheet Data: Motor:   Electronically controlled
direct drive, Dual EDS 500 system.
Start Time: @ 33-1/3 RPM 2-2.5 sec.
Platter: Non-magnetic, 1.4kG, 304mm
Pitch Control: +/- 10% @ both speeds
Wow & Fluuter:
     DIN 45 507: +/- 0.05%
     WRMS:         +/- 0.03%
Rumble:
   Unweighted: 50dB
   Weighted:     75dB
Tracking Force:  0-3 grams
Cartridge: Ortofon type mounting
  To use an 1/2" mount, use part number
  262 186.

Years Manufactured: 1981-??
Price (New): N/A
